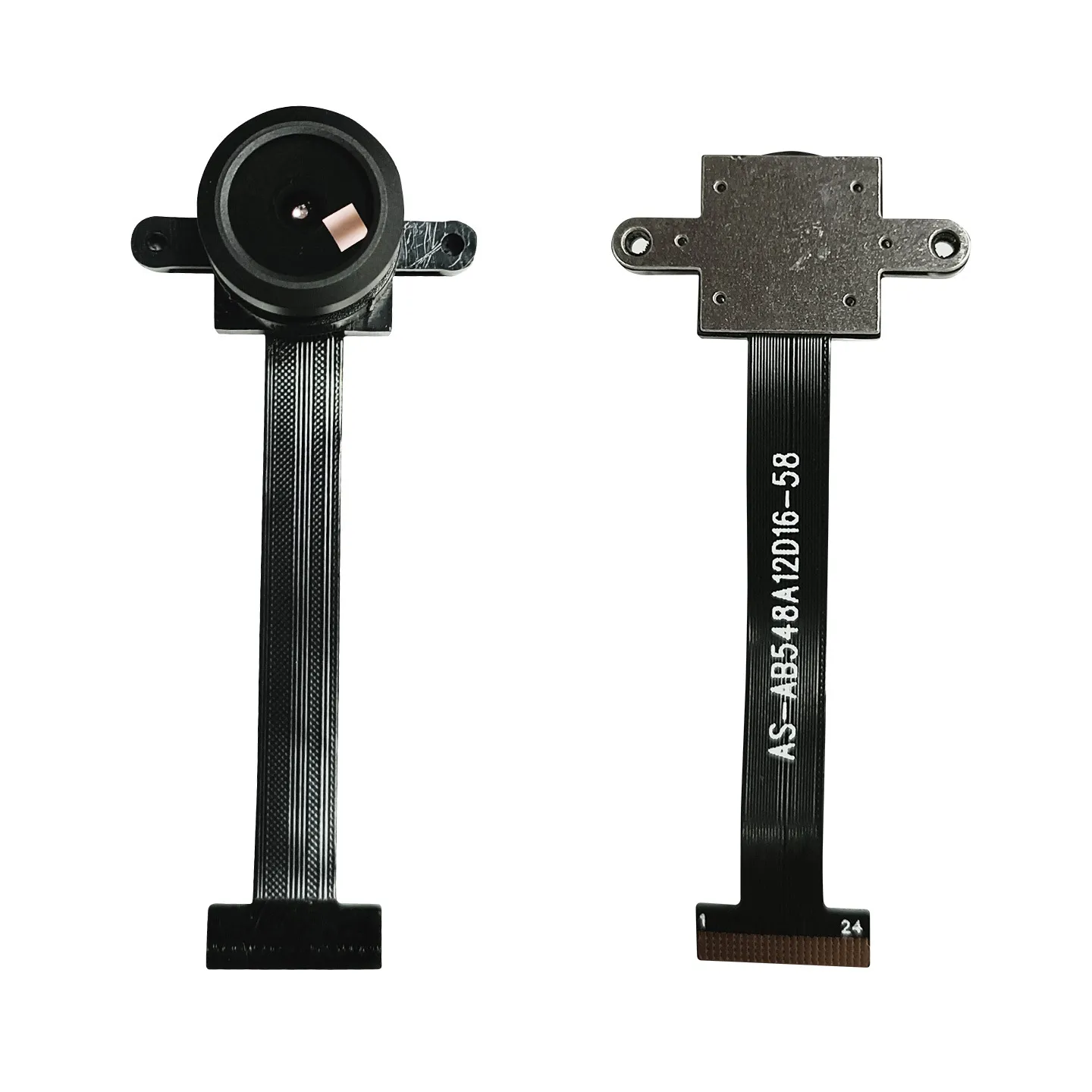

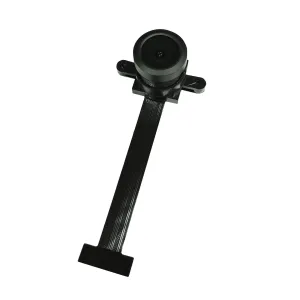

High-Quality 2MP 30fps GC2145 CMOS Sensor Module Support ESP32/K210/STM32 Development Boards 24-Pin DVP Wide-Angle Camera Module

    High-Quality 2MP 30fps GC2145 CMOS Sensor Module Support ESP32/K210/STM32 Development Boards 24-Pin DVP Wide-Angle Camera Module

    High-definition 2MP DVP Camera Module Facial Recognition / Security Surveillance / Built-in ISP with UVC Format / Wide-angle Lens Optional
  • Share:
  • Contact us Inquiry

◆ Model Number : GC2145
◆ Sensor : GC2145(1/5")CMOS
◆ Frame rate : UXGA:30fps / 720P:30fps / SVGA:30fps
◆ Pixel : 2MP (1616x1232)
◆ Formats : YCbCr4:2:2,RGB565, Raw Bayer
◆ Interface : DVP

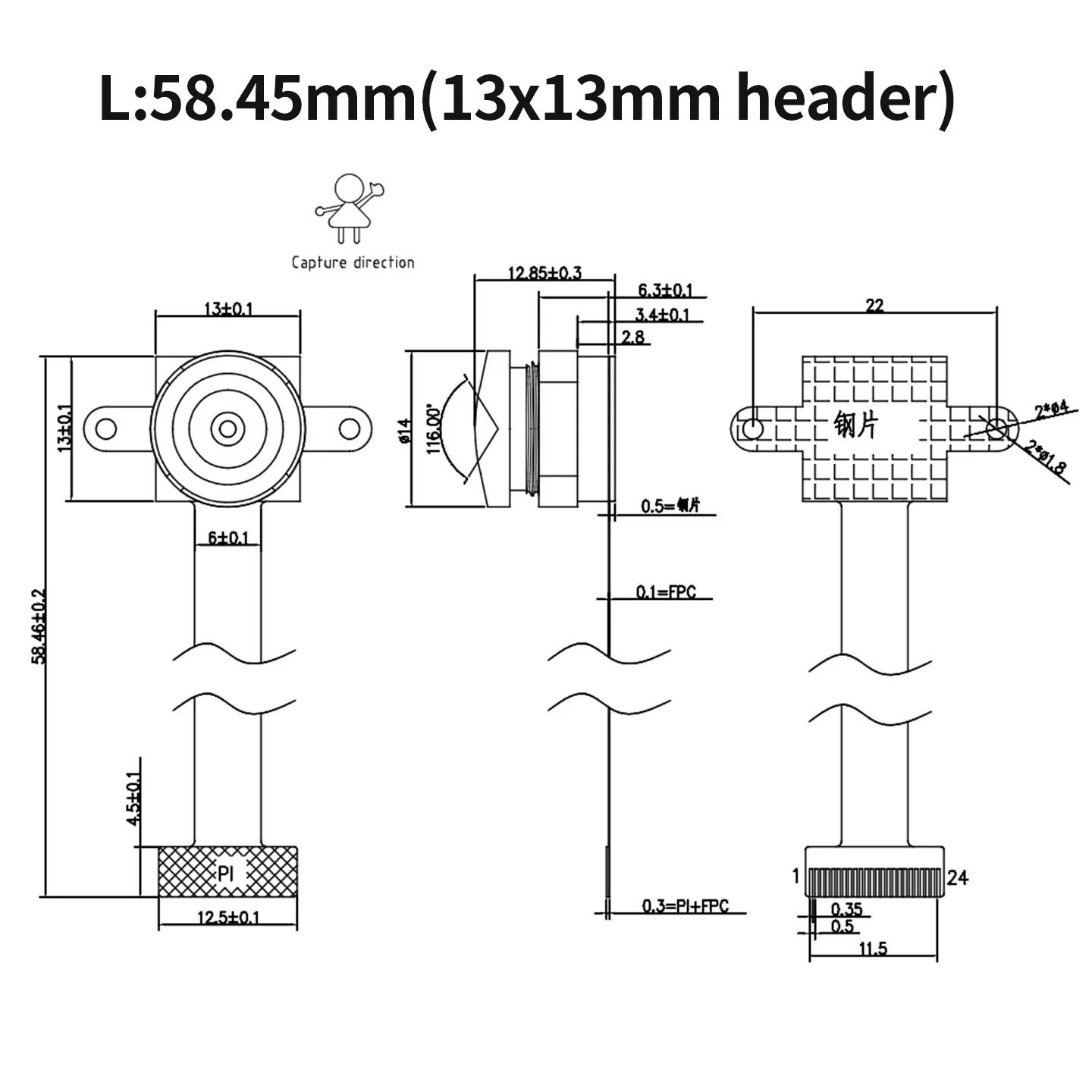

◆ Size / Dimension : L:58mm(24pin FPC)
◆ Function : Facial Recognition/QR Code Scanning/Smart Home Devices (Video Doorbells, Robotic Vacuum Cleaners)/Advertising All-in-One Machines/Self-Service Terminals/Surveillance (In-Car Monitors, Remote Monitoring)
