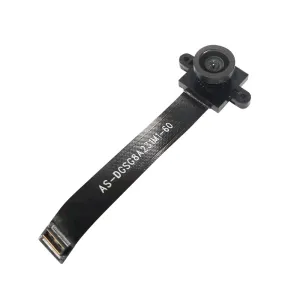

Factory Camera Module SC132GS CMOS Global Shutter 1.3MP 120fps NIR Capture Machine Vision Positioning and Obstacle Avoidance

    Factory Camera Module SC132GS CMOS Global Shutter 1.3MP 120fps NIR Capture Machine Vision Positioning and Obstacle Avoidance

    High-Definition 1.3MP Global Shutter High-Speed Camera Module Black-and-White Imaging / Wide-Angle High-Speed 120fps Motion Video Capture / Machine Vision / NIR QR Code Scanning Applications
  • Share:
  • Contact us Inquiry

◆ Model Number : SC132GS
◆ Sensor Chip : SC132GS(1/4")CMOS
◆ Pixel : 1.3 MP 1080H*1280V
◆ Frame rate : 1080H * 1280V@10bit 120fps
◆ Interface : MIPI
◆ Features : Global shutter; High light sensitivity; High signal-to-noise ratio with 850nm/940nm near-infrared enhancement; I²C interface register programming; Low power consumption supporting external exposure control and multi-sensor synchronization; Built-in temperature sensor for auto exposure/gain control, supporting sub-frame exposure; Supports LEDSTROBE horizontal/vertical window adjustment; 28x analog gain, 32x digital gain
◆ Applications: 3D scanning / Position tracking / Iris scanning / Barcode scanners / Gesture recognition / Augmented reality / Virtual reality / Machine vision / Surveillance / ADAS obstacle avoidance / Dashcams / IoT / Industrial inspection / Action cameras / Hovering
